KEY PERFORMANCE IMPROVEMENTS FOR THE ICX825:

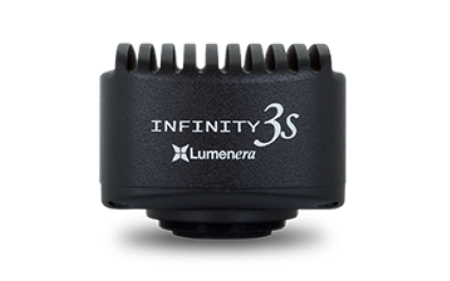

The Sony ICX825 CCD sensor produces a 53% improvement in sensitivity over the popular ICX285 sensor. This sensor technology offers extremely high quantum efficiency, high dynamic range, 6.45 x 6.45 μm pixels and very low noise of 5.9 e-. The research-grade designation of the INFINITY3S-1UR is a testament to low noise electronics, high-grade components and unique thermal management techniques.
• 6dB increase in dynamic range vs ICX285
• Increased sensitivity thus reducing exposure time and reducing photo bleaching in fluorescence applications
• Increased frame rate of over 60fps vs 30fps for the ICX285
INFINITY Software:The INFINITY3S-1UR comes with Lumenera's fully-featured INFINITY ANALYZE, an image capture and analysis software package offering camera control, measurement, annotation, tiling and post capture enhancement. Camera and software combine to create a complete microscopy imaging solution for your application.
High Speed USB 3.0 Interface: The INFINITY3S-1UR uses the latest USB 3.0 technology at 5 Gbits/sec to deliver the fastest image transfer - even at its highest resolution. Lumenera's USB 3.0 cameras are backwards compatible with USB 2.0 for those not needing the full speed of the camera.
Contact us to discuss custom OEM variances.
The ICX825 design increases sensitivity by 3.7 dB, and dynamic range by 6 dB over the ICX285 sensor.
PRODUCT HIGHLIGHTS:
-
Industry leading Sony EXview HAD ll sensor technology with 53% improvement in sensitivity over ICX285
-
Color or monochrome ICX825 CCD Global Shutter sensor with 2/3” optical format providing a resolution of 1392 x 1040 using 6.45 x 6.45 μm pixels
-
5.9 e- read noise
-
14-bit pixel depth for 16,384 tonal values per channel
-
60 fps at 1.4 megapixel (monochrome version); 45 fps at 1.4 megapixel (color version)
-
High-speed USB 3.0 interface for plug and play installation on any computer
-
GPIO for control of peripherals and synchronization
-
128 MB of onboard memory for frame buffering results in reliable image delivery
INCLUDED IN THE BOX:
-
INFINITY3S-1URC — 1.4 Megapixel Color CCD USB 3.0 Camera or INFINITY3S-1URM — 1.4 Megapixel Monochrome CCD USB 3.0 Camera
-
USB 3.0 Cable (3m length)
-
La050300 — Power Supply, 5 V DC, 15W
-
LuINFSW-DVD — DVD with INFINITY user application software (including INFINITY ANALYZE), TWAIN driver and documentation
ORDERING OPTIONS:
-
LuIAP-2 — INFINITY Advanced Features Pack 2: Includes USB Key for extra INFINITY ANALYZE license +
-
Advanced Features Module (spherical aberration correction and multi-focus composition), additional 1 year warranty, 1 advance product replacement
-
La2000PAFL — GPIO Breakout Cable
-
LuSDKSW — Software Developer’s Kit (Web Download)
** 60 fps at 1.4 megapixel (monochrome version); 45 fps at 1.4 megapixel (color version)
TECHNICAL SPECIFICATIONS
CAMERA SETTINGS
Image Sensor | CCD, Sony ICX825, Avail in Color or Monochrome |
---|---|
Optical Format | 2/3" |
Frame Rate | 60 |
Bit Depth | 8 and 14-bit |
Read Noise | ~5.8 e- (in dual-tap mode, slowest clock) |
Dark Current | <1 e-/s (at 22 ºC ambient, 41 ºC internal) |
Pixel Size | 6.45 x 6.45 µm square pixels |
CAMERA CONTROLS
Mass | 340 g |
---|---|
Power Requirement | External 5 V DC, 1.2 A, power supply (included) |
Power Consumption | 6 W maximum in full frame rate mode |
Operating Temperature | 0 to 50 °C |
Operating Humidity | 5 to 95%, non-condensing |
ROI | Any multiple of 16 x 16 pixels (quad tap mode) |
Interface Connector | USB 3.0 (USB 2.0 supported for lower frame rates) |
Dimensions | 57.15 x 97.79 x 39.62 mm 2.75 x 3.85 x 1.56 inches |
Lens Mount | Adjustable C-mount standard |
Binning Options |
2 x 2, 4 x 4 (mono only) |
